Pull Cylinders

SKU

6CP

Buy online Buy local

Product Details

High strength steel construction
One piece high grade alloy bearing for side load protection and longer life
Polyurethane cup seal helps provide optimum performance
External plunger threads
Internal base threads
Used for pulling and tensioning
5AS2 offers a turbo function that features high flow at high pressure condition
5AD15M offers a 4-way control valve for operation of double acting cylinders
Maximum working pressure: 1, psi / 7 bar

Documents

Add to Wish List Send a Request

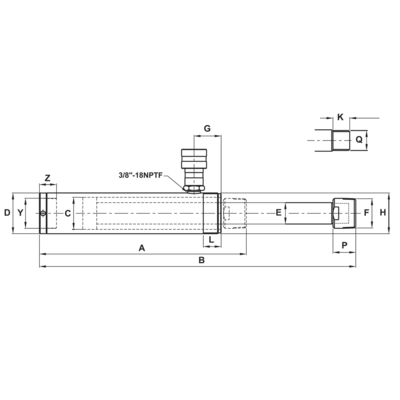

Technical Details

Grouped product items
Product																			Buy online
JHW6CP02T05	2.5 t	5 in	0.56 in	8930 psi	2.78 in³	10.55 in	15.55 in	1.13 in	1.89 in	1-1/2"-16 in	0.98 in	0.76 in	M16x1.5 mm	3/4"-14NPTF in	0.72 in	3/4"-14NPTF in	1.65 in	1.13 in
JHW6CP05T05	5 t	5.55 in	1.14 in	8770 psi	6.34 in³	11.85 in	17.35 in	1.69 in	2.25 in	2-1/4"-14 in	1 in	0.93 in	M28x1.5 mm	1-1/4"-11.5NPTF in	0.95 in	1-1/4"-11.5NPTF in	1.5 in	1.25 in
JHW6CP10T06	10 t	5.95 in	2.44 in	8200 psi	14.48 in³	11.75 in	17.7 in	2.17 in	3.35 in	M85x2 in	1 in	1.02 in	M30x2 mm	M30x2 in	0.98 in		1.5 in
