Low Profile Cylinders

SKU
6CL
Product Details
  • Compact design for use in confined spaces
  • Rod wiper helps seal out dirt and contamination
  • Specially designed return spring ensures a quick retraction and extends the life of the spring
  • Industrial hard chrome plated ram helps prevent scratching and corrosion
  • Plunger end is grooved to reduce load slippage
  • Includes high flow ball coupler and dust cap
Documents
Instruction Manual Download

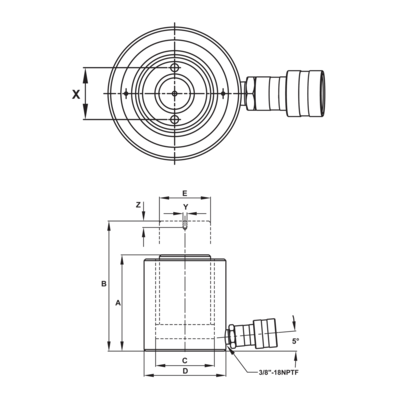

Technical Details
Grouped product items
Product Buy online
JHW6CL10T01 10 t 1.5 in 2.35 in 8511 psi 3.53 in³ 3.48 in 4.98 in 1.73 in 2.75 in 1.5 in 1.03 in M4 in 0.32 in
JHW6CL20T02 20 t 1.75 in 4.37 in 9153 psi 7.65 in³ 3.9 in 5.65 in 2.36 in 3.63 in 2 in 1.56 in M4 in 0.32 in
JHW6CL30T02 30 t 2.44 in 6.49 in 9245 psi 15.84 in³ 4.61 in 7.05 in 2.87 in 4 in 2.5 in 1.56 in M5 in 0.32 in
JHW6CL50T02 50 t 2.36 in 9.87 in 10132 psi 23.29 in³ 4.8 in 7.17 in 4.88 in 3.54 in 2.76 in 1.56 in M5 in 0.32 in
